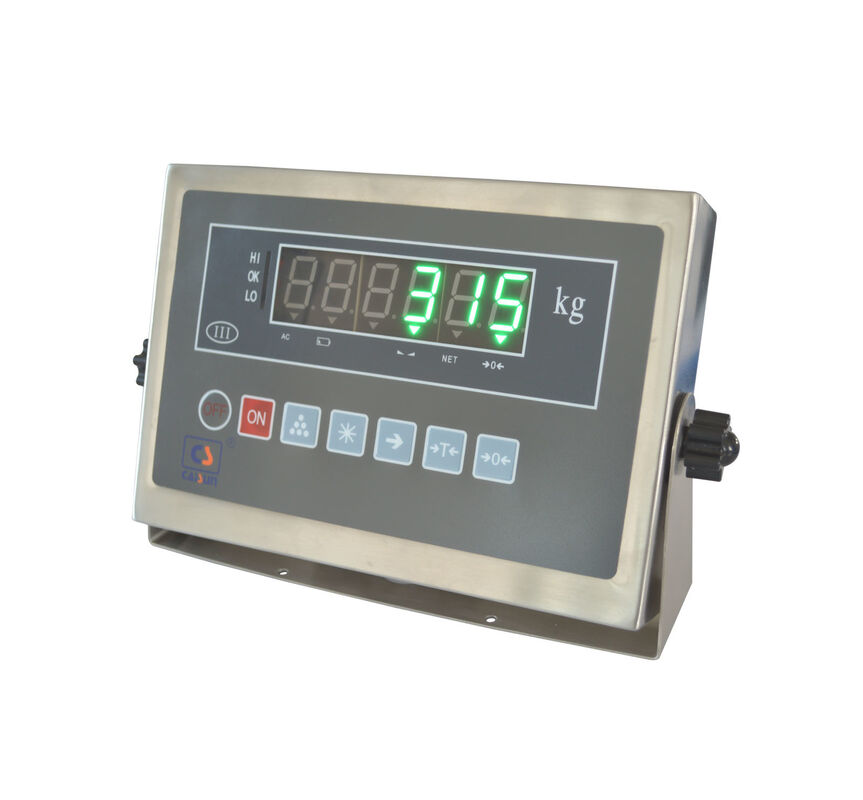

BXK315A1-22G Industrial Weighing Indicator With Green LED Display – High Immunity & Precision

Features

• 1. Engineered for harsh environments, this weighing indicator provides strong 10 V/m immunity to radiated electromagnetic fields.

  2. The indicator features a clear 6-digit 20.2mm green LED display for optimal readability.

  3. This versatile weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

  4. High precision measurement is ensured by 1,000,000 internal ADC counts in this indicator.

  5. Flexible data handling is possible with manual and automatic weight accumulation on the weighing indicator.

  6. The indicator incorporates automatic zero tracking to maintain long-term accuracy.

  7. Equipped with an RS-232C/RS-485 interface, this weighing indicator supports continuous data output and command protocols.

  8. Direct printing is facilitated by the built-in RS-232C serial printer interface on this indicator.

  9. Process control is simplified with HI/OK/LO set points available on the weighing indicator.

  10. A low battery warning feature ensures uninterrupted operation of the indicator.

Dimensions(mm)

265×162×58mm
